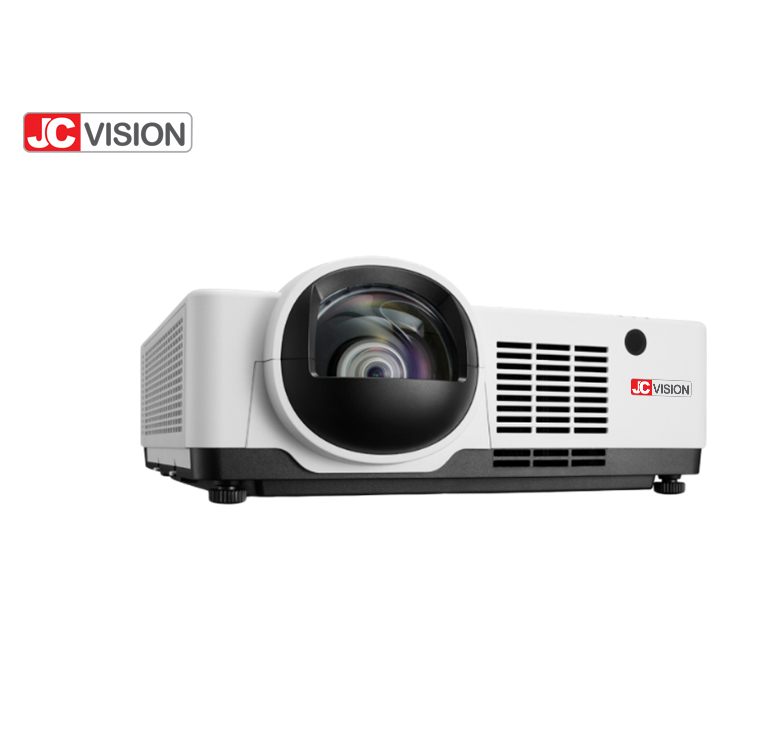

| Overall Specification | Brand | JCVISION |
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
Light source
Life time | Normal mode | 20000hrs |
| ECO1 mode | 30000hrs |
| ECO2 mode | 30000hrs |
| Lens | Lens Vendor | RICOH |
Projection
Lens | F | F1.6 |
| f | 6.39mm |
| Zoom/Focus | Manual |
| Throw Ratio | 0.44:1 |
| Zoom Ratio | N/A |
| Screen size | 55-300 inch |
| Lens Shift | N/A |
| CR | Contrast Ratio
(FOFO) | 5000000:1 |
| Noise | Noise(dB) | TGT:
37dB (Normal)
27dB (ECO) |
| Uniformity | Uniformity(Actual Min)
-JISX6911 | 80% |
| AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9 |
| Terminal(I/O port) | | |
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1 (Display) |
| DVI-D | N/A |
| HD BaseT | *1 (Optional) |
| HD-SDI(3G-SDI) | N/A |
| Video | N/A |
Audio in
(mini jack,3.5mm) | *1 |
| Output | VGA | *1 |
| HDMI 1.4B(OUT) | N/A |
Audio out
(mini-jack,3.5mm) | *1 |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) |
| USB-B | *1 (For upgrade) |
| Wired Remote(IN) | N/A |
| Wired Remote(OUT) | N/A |
| General Spec | | |
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter |
| Filter Life time | 8000h |
Power
Consumption | Power Requeirements | 100~240V@ 50/60Hz |
Power Consumption
(Normal) (Max) | 360 |
Power Consumption
(ECO1) (Max) | 280 |
Power Consumption
(ECO2) (Max) | 230 |
ECO Standby Mode
Power Consumption | <0.5W |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-80% |
| Store Temp. | -10 to 50°C |
| High altitude | 0~3000m |
| Other Functions | | |
| Keystone | Keystone Correction
(Lens@center) | V: ±15°
H:±15°
Pincushion/Barrel Correction
6 Corner correction
4 Corner Correction
Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish,
Swedish, Dutch ,Portugese, Japanese, Simplified Chinese,
Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish,
Norwegian, Danish, Indonesian, Hungarian, Czech,
Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView
(Crestron) | Yes |
LAN Control--
AMX Discovery | Yes |
LAN Control--
PJ Link | Yes |
Scanning
Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz |
Display
Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes |
| Suspend | Yes(5miniutes no singnal as default) |
| Picture mode | Dynamic, Standard, Cinema,
Colorboard, sim-DICOM, Blackboard(Green) |
| Cooling time | 0s, Normal,30s |
| Closed caption | N/A |
| Auto Ceiling | Yes |
| D-Zoom | 1~33 |
| Others | 360° projection | Yes |
| Dimension&Weight | | |
| | MAX Dimensions
(WxHxD mm) | 405(W)×404(D)×164(H) |
| Net. Weight (KG) | 8.1kg |
Packaging Box Dimensions
(WxHxD mm) | 510(W)×498(D)×260(H) |
| Gross. Weight (KG) | ~10.4KG |
| Accessory | | |
| | Manual Languages | Chinese,English |
| Standard Accessaries | Power cord (EU)/power cord (Ja)
Remote control&RC Battery |
| Regulation List | | |
| China | CCC | √ |
| WW | CB | √ |
| US | cTUVus | √ |
| FCC | √ |
| FDA | √ |
| EU | CE-EMC | √ |
| CE-LVD | √ |
| CE-ERP | √ |
| Laser Security Level | class1 | √ |
| EMC Class | | |
| | EMC Class | Class A@3dBm |
