Name: Nano Smart Interactive Flat Panels For Education 86 inch interactive display
Brand: JCVISION
Price: 2680 USD

Add to Cart

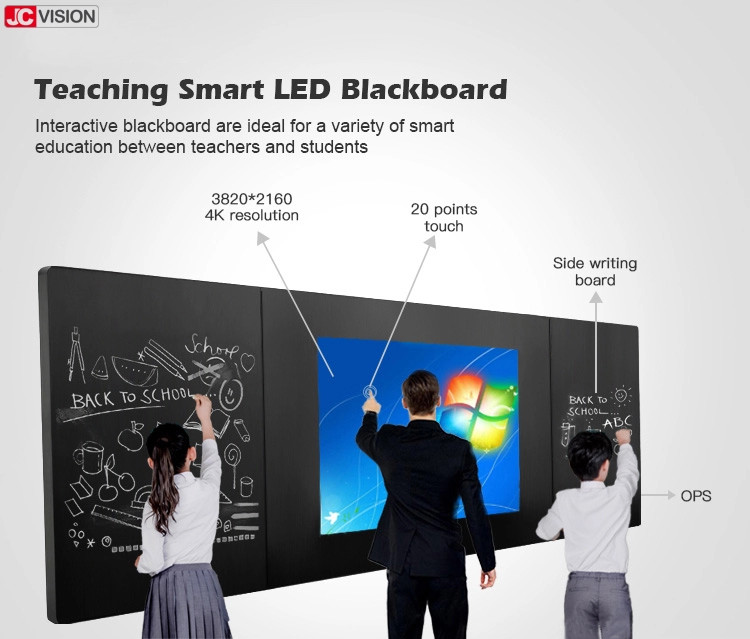

JCVISION 86 Inch Touch Screen Interactive Smart Nano Blackboard For Education

Product Function

Function	Android6.0 embedded system USB multimedia file playback function, five-finger screen saver energy saving, computer channel drop-down screen, etc.
Touch Function	Support 10-point computer touch operation , Support image zoom in, zoom out, and rotate, Support touch function after signal source switched , Support the touch control of the signal source, volume and other menu controls in the display state of each signal source Sleep timing, shutdown memory
Other Function	1.Support remote control instead of keyboard, achieve F1~F12 key function, remote control TV power on function , 2.Support eye protection function, achieve that the screen becomes dark when writing to protect the eyes , 3.Support touch menu, realize return key, menu operation, task preview, channel switching, volume , Adjustment, quick whiteboard operation and other functions. 4.Support clicking any signal source on the main page of the system . 5.Support remote child lock function . 6. Support wireless wifi, wired LAN. 7.Support front button one-key switch computer, machine, one-key computer reset and home button function . 8.Support embedded high-definition camera to take pictures and video functions (optional support required) Lower front VGA, HDMI, USB2.0, USB3.0, Touch interface, easy for users to use .
Overall appearance

Machine characteristics

Shell and appearance	Aluminum alloy face frame corner block design, front buttons, lower front ports, front speakers
Overall dimensions	Length 4200 mm * Height 1336 mm * Thickness 70 mm Middle size Lengt
Side panel size	Length 1050 mm * Height 1260 mm * Thickness 70 mm
Maximum power consumption rate	470W (excluding computer)
Standby power	≤0.5W
Middle size	Length 2100 mm * Height 1336 mm * Thickness 70 mm

System parameters

CPU	CORTEX A53 4-core 1.5GHz
System	CORTEX A53 4-core 1.5GHzAndroid6.0 embedded system
RAM	DDR3 2G
Storage	8GB
External storage	SD card maximum expansion 128 g ; USB2.0/3.0 Maximum support 1T

Display Parameters

Screen Size	86 inch ( 16:9)
Screen Type	LED LCD display
Screen Display size	1895 (H) x 1066 (V)
Physical resolution	3840(H)×2160(V)
Display color	10bit , 1.07B
Refresh rate	60HZ
brightness	450cd/m2
Contrast	5000:1
View angle	178°
Display protection	4mm Fully tempered high explosion- proof glass
Backlight life	80000 hours

Android parameters

Image format	PAL/SECAM/NTSC(Option)
Sound system	BG /DK /I/L
decoding	3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filter, etc.
Speaker specifications	15W /8 ohm × 2 speakers
Audio characteristics	Balance, automatic volume control, surround sound, equalizer
Input port	VGA port: 1 group
	RJ45:1 group
	SD card : 1 group
	TOUCH PORT:1 group
	HDMI port: 3 groups (2 groups front bottom , 1 group inside)
	USB2.0 ports: 2 groups
Output port	RJ45:1 group
Communication port	RS232:1 group

Touch Parameters

Touch embedding method	Built-in integrated, not external
Touch sensing technology	Capacitive sensing recognition touch technology (10 points)
Writing method	Fingers, touch pens or other non-transparent objects with a diameter of not less than 5mm (multi-point 8mm)
Cursor speed	120 points/s
positioning accuracy	More than 90% touch area is ±2mm
Communication Interface	Type B USB male
Touch resolution	32767*32767
Number of touches	Theory unlimited
Computer response	System automatic identification; ≤15ms
Driver	Free drive

Standard accessories (with accessories according to the

actual situation)

Item	Quantity
86 inch interactive smart tablet	1 unit
Telecontroller	1 pcs
Warranty Card	1 pcs
Touch pen	1 pcs
Certificate of conformity	1 pcs
Manual	1 pcs
3.5 meter power line	1 pcs

Nano Smart Interactive Flat Panels For Education 86 inch interactive display
