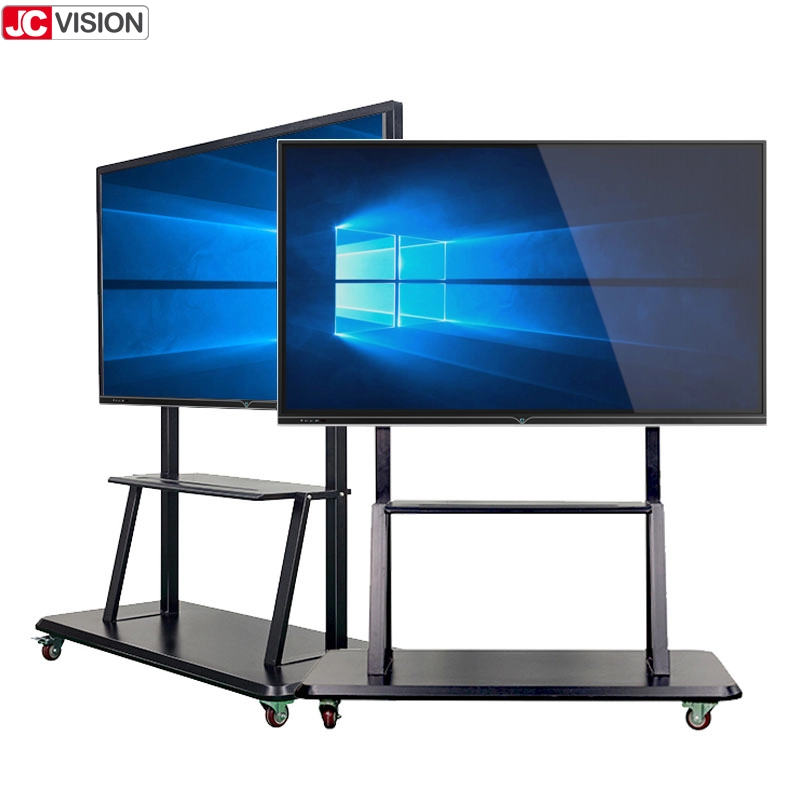

JCVISION 75inch Nanoboard Smart Interactive Whiteboard For School Infrared Finger Touch Smart Board
Five core functions Flagship system Super CPU configuration; global Internet, one "line" to complete; full channel support Touch USB follow. Active "smart" pen High quality, beautiful appearance intelligent pen, multi-system compatibility, arbitrary switch, delicate writing, PPT presentation. Multiple meetings 1000M network, video meeting fluent transmission; support 8K video decoding, make remote video meeting easy and convenient; local meeting with comments and sharing, file content can be automatically classified. Ultra - clear display The 4K UI image shows the charm of feeling details. The handwriting is delicate, clear and non-jagged. Write at random High-precision touch; supports 20-point touch control；and single-point writing supports two-point zoom-out, zoom-in, drag and switch freely.
| | LCD Size | 55inch |
| LCD Brand | LG |
| Light source | LED Backlight |
| Resolution | UHD 3840x2160(Pixels)-UHD4K |
| Brightness (typ)/(min) | 350 cd/m2(typ.) |
| Contrast Ratio(typ) | 1600:1 (typ)/5000:1 |
| Response Time(ms) | 8ms (typ.) |
| Pixel Pitch | 0.4845 mm x 0.4845 mm |
| Refreshing frequency | 60 Hz |
| Viewing angle | 178°(H) / 178°(V) |
| Life Time | 60,000 hrs (min.) |
| Color Saturation(x% NTSC) | 72% |
| View area | 1208.6*677.9mm |
| Display Colors | 1.07Billion(10Bit) |
| | Sensing Type | 20-40 Points Infrared Touch |
| Touch System | Windows 10/Windows7/Windows Vista/Windows XP/Android /MAC OS |
| Surface Protection | 4mm Toughened Glass |
| Glass Transmission | >92% |
| Frame Material | Aluminum |
| Output coordinate | 32768(W) x 32768(D) |
| Minimum Touch Object | 5mm |
| Touch Accuracy | ±2mm |
| Response Time | 10ms |
| Input Method | Finger or touch pen |
| Theory Clicks | Unlimited |
| Light resistance | Available |
| | Solution | MSD6A818 |
| CPU | Quad core,cortex A7,1.2Ghz |
| GPU | Mali-450 |
| RAM/ROM | 4GB DDR3/32GB |
| OS | Android 8.1 |
| | HDMI IN | *3 |
| 4K*2K | *2 |
| VGA | *1 |
| PC-AUDIO | *1 |
| Y PB PR | *1 |
| LAN | *1 |
| AV | *1 |
| TV-MIC | *1 |
| HDMI OUT | *1 |
| AV OUT | *1 |
| EARPHONE | *1 |
| COAXIAL | *1 |
| TV-AUDIO | *1 |
| RS232 Remote Control | RS232-IN*1; RS232-OUT*1 |
| MEDIA-USB | *2 |
| PC-USB | *1 |
| TOUCH-USB | *2 |
| | Power requirements | 100 V ~ 240 V, 50-60 Hz |
| Power consumption | <500W |
| Power consumption in standby mode | ≤0.5W |
Touch Frame Electrical Characteristics | Connect type | Male USB2.0 |
| Communication type | USB2.0 Full speed |
| Power supply | USB power |
| Voltage | DC+5V±6％ |
| Static Level | EN 6100-4-2 2008: 3 Level, Air discharge 8KV |
| | Working Temperature | 0°C ~ 40°C |
| Storage Temperature | Minus 10°C ~ 60°C |
| Working Humidity | 20% ~ 80% RH Non-Condensing |
| Storage Humidity | 10% ~ 60% RH Non-Condensing |
| Language | OSD | English |
| | Product Size (mm)(W x D x H) | 1257.7*745.2*82.2mm |
| Package Size (mm)(W x D x H) | 1366.6*185*891.5mm(Heavy Carton) |
| Net Weight | 24Kg±1.5Kg |
| Gross Weight | 30Kg±1.5Kg |
| Housing Material | Metal |
| Housing color | Black |
| Frame width(T/B/L/R) | 32.5 / 70.5 / 32.5 / 32.5 mm |
| VESA | 4-M8 Screw hole 600*400mm |
| Speaker | 16W * 2 |
was founded in 2010, a high- tech , innovative and dynamic group ,specializing in research ,development and manufacture of IT products and solutions . Our headquarter in 'Silicon Valley ' California of U.S.A and manufacturing base in Shenzhen of China . Our JCVISION Technology Group business covering Smart Education ,Smart Display , Smart Projector etc .
We believe that offering good products under competitive price & good quality with responsive service is the best feedbacks to our respectable customers . We sincerely invite you to enjoy our service
Our Advantage :
1.Attractive Price based on consistent /Reliable quality .
2. Strong R&D team and design capability .
3.Wide Range of product lines to meet comprehensive requirements .
4. On time shipping / Optimum / flexible logistics arrangement .
5. Effective and efficient pre-sale & after-sale service .
Q:
Is your company factory ? A:Yes ,our factory base out in Shenzhen China, and welcomed to visit our factory anytime.
Q: What's your after-sale service?
A: We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.
Q:Can you provide OEM service?
A: Yes, we can. we can customize it according to your request.
Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC before shipping to customers.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
Shenzhen Junction Interactive Technology Co., Ltd.
Founded in 2010, JCVISION Technology Inc, brand with "JCVISION", is
a high-tech, innovative and dynamic enterprise, specializing in
research, development and manufacture of modern educational
equipments and multi-media products, also, Junction is the system
integration and interactive solution provider, we are in this field
nearly ten years, JCVISION has become a well-known educational
products & multi-media products brand.
Now we JCVISION products line are covering JCTOUCH interactive flat
panel display, JCBOARD interactive whiteboard, JCKAPP interactive
kapp, JCPrinter 3D PRINTER and other peripherals, our JCVISION
products have already entered around 85 countries in the world.
