43 49 55 65Inch LCD Video Wall Display Splicing 4K Video Wall Screen

Ask Lasest Price
Brand Name :	JCVISION
Model Number :	JC-VW460
Certification :	CE, Rohs, FCC
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000 Unit/Units per Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

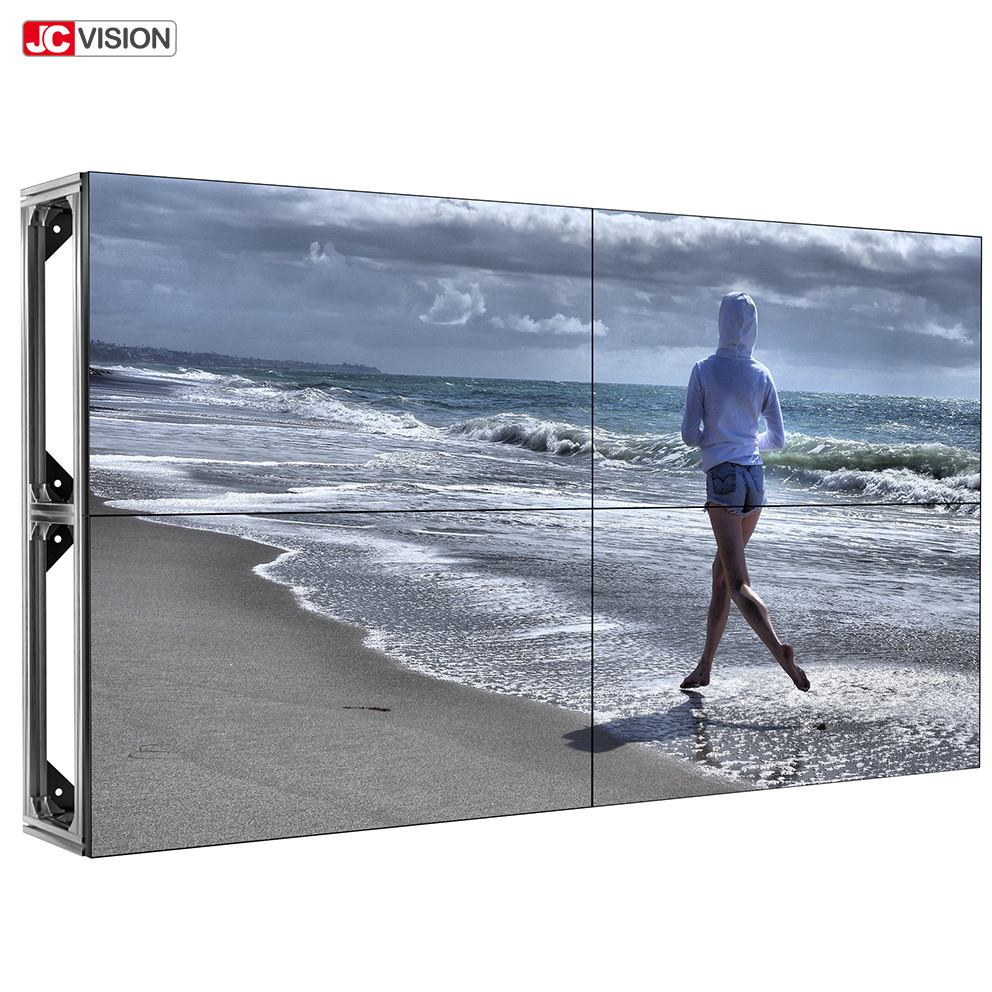

43 49 55 65Inch LCD Video Wall Display Splicing 4K Video Wall Screen

JCVISION 43 49 55 65 Inch Floor Stand Digital Signage 4k Splicing Video Wall Screen

Features

1. Full hardware architecture, professional splicing chip design without CPU and operating system

2. Multi-line parallel processing with powerful processing functions;

3. Integrated multiple video signal sources

4. Can open the underlying communication protocol, which is convenient for users to flexibly adopt third-party central control, system or self-programmed software to construct a large screen engineering system

5. Embedded firmware intelligent upgrade system.

6. Narrow border full metal frame design

7. Fully silent industrial fan with automatic temperature switch

8. With 3D noise reduction, 3D filtering, 3D deinterlacing

9. Comes with a large screen splicing piece, a healthy splicing, easy to use

10. With energy saving, environmental protection, no radiation, support 7 * 24 hours of uninterrupted work, adapt to a variety of working environments that need to be turned on for a long time

11. Uniform brightness, stable image, no flicker, no distortion

12. Applicable to: commercial institutions, large shopping malls, specialty stores, franchise stores, hypermarkets, star hotels, restaurants, travel agencies, drug stores, etc.

Specification

Model	Samsung 46 inch 3.5mm Video wall screen specification
Contrast	3000:1
Display color	16.7M
Response time	8ms
Viewing angle	89/89/89/89(Typ)
working frequency	60HZ
Stitching	3.5mm
USB input	(usb * 1) can be upgraded to support video picture media playback
HDTV input	(HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible with 4k, customization required
VGA input	(vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
DVI input	(dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility 4k needs customization
BNC input	(bnc * 1) Support ntsc pal and other formats
Remote Receive Input	(debug * 1) Remote control signal transmission
RJ45 input	(rj45 * 1) rs232 signal input
RJ45 output	(rj45 * 2) rs232 signal output
BNC output	(bnc * 1) Support ntsc pal and other formats
Show diagonal	AC220V 50/60Hz
Dimensions	<=240W
Display area	3W
Zoom	0～50℃
Panel type	-20～65℃
Resolution	Simplified Chinese, Traditional Chinese, English and other languages
Dot Pitch	18KG
brightness	Wall-mounted, embedded, floor-standing, front maintenance, cabinet

Model	Samsung 55 inch 1.7mm Video Wall Screen Specification
Show diagonal	55 "
Outline size	1211.54(W)682.34(H)118.2(D)mm
Display area	1209.6(W)*680.4(H)mm
display scale	LED backlight
Resolving power	1920(RGB)X1080,FHD
Point spacing	0.210(H)*0.630(V)
brightness	500CD/M
contrast ratio	4000:1
Display color	16.7M
response time	8ms
viewing angle	89/89/89/89(Typ)
working frequency	60HZ
Splicing joint	1.7mm
USB input	(USB * 1) upgradeable video picture media playback
HDTV input	(HDTV * 1) support 1920 * 1080 @ 60Hz signal input, downward compatible 4K, customized
VGA input	(VGA * 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility
DVI input	(DVI * 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility 4K needs customization
BNC input	(BNC * 1) support NTSC pal and other systems
Remote control receiving input	(debug * 1) remote control signal transmission
RJ45 input	(RJ45 * 1) RS232 signal input
RJ45 output	(RJ45 * 2) RS232 signal output
BNC output	(BNC * 1) support NTSC pal and other systems
working voltage	AC220V 50/60Hz
Product power consumption	Less than 240W
standby power	3W
working temperature	0~ 50 C
Storage temperature	-20~ 65 C
Menu language	Simplified Chinese, traditional Chinese, English and other multi-national languages
Installation mode	Wall mounted, embedded, floor standing, front maintenance, cabinet

Model	LG 49 inch 3.5MM splicing unit specifications
Diagonal display	49 "
Display area	1073.8 (W) *604.0(H)mm
Zoom	led Backlight
Panel Type	LED backlight
Resolution	1920(RGB)X1080, FHD
Spacing	0.1864 (H) * 0.5593 (V)
brightness	450CD / M²
Contrast	1300: 1
Color display	16.7M
response time	8ms
Viewing angle	89/89/89/89(Typ)
working frequency	60HZ
Patchwork stitching	3.5mm
USB input	(USB * 1) can be upgraded media player supports video pictures
HDTV input	(HDTV * 1) * Support 1920 1080 @ 60HZ signal input is backward compatible with 4K be customized
VGA Entry	(VGA * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward compatible
DVI Entry	(DVI * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward compatible 4K be customized
BNC Entry	(BNC * 1)And other standard support NTSC PAL
Remote control receiver input	(DEBUG * 1) the remote control signal transmission
RJ45 input	(RJ45 * 1) RS232 input signal
RJ45 output	(RJ45 * 2) RS232 signal output
BNC output	(BNC * 1)And other standard support NTSC PAL
Operating Voltage	AC220V 50 / 60Hz
Power consumption	≤240W
Standby power consumption	3W
Operating temperature	0~ 50 C
storage temperature	-20~ 65 C
Menu language	Simplified Chinese, Traditional Chinese, English and other languages
Installation mode	Wall-mounted, embedded, floor, before the maintenance, cabinet
