RS232 USB2.0 Interactive Flat Panel Display 450nits For School

Ask Lasest Price
Brand Name :	JCVISION
Model Number :	JC-T75K
Certification :	CE, FCC, RoHS
Price :	Price Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	2000 pcs/month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

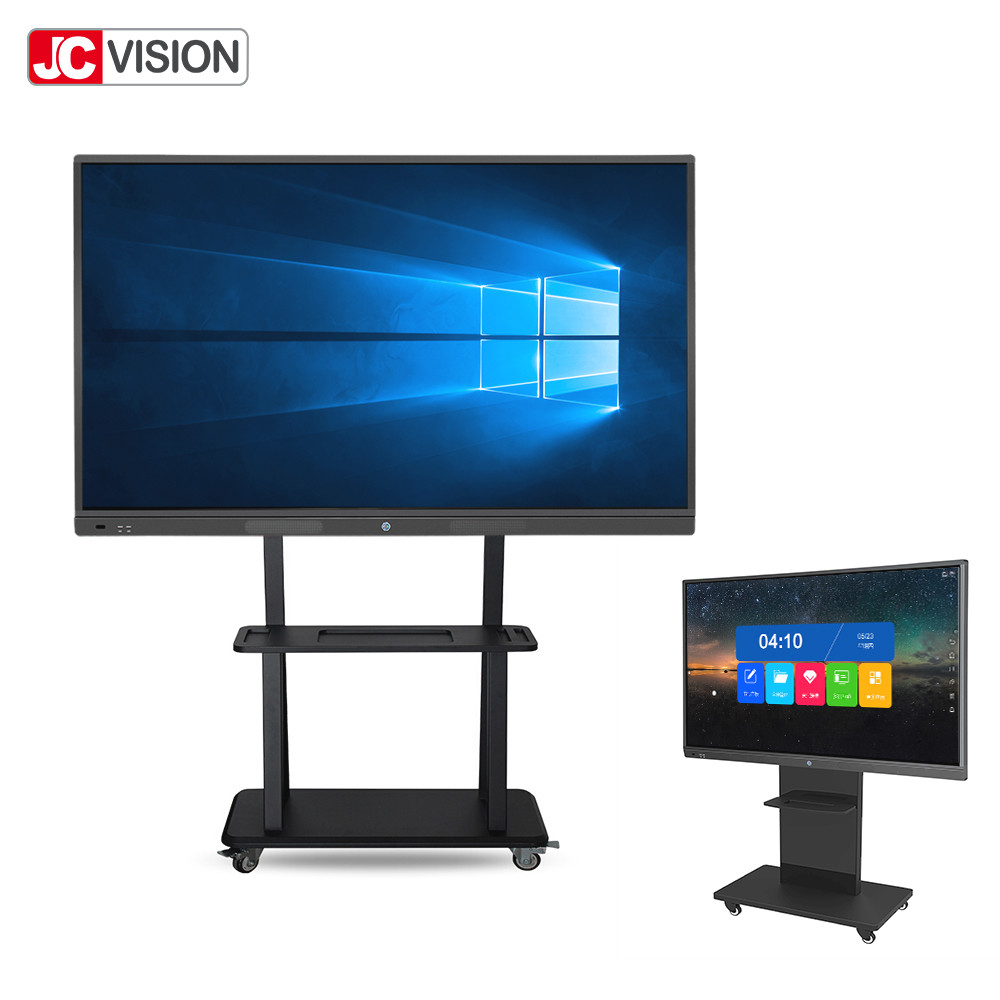

RS232 USB2.0 Interactive Flat Panel Display 450nits For School

Touch Screen Smart Board is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc…

Specification

LCD Panel
Size	55 inch/ 65 inch / 75 inch / 85 inch / 98 inch Available
Panel Brand	LG,BOE,AU (gauge A screen)
type	TFT-LCD S-PVA
Resolution	3840 × 2160 (UHD) @60hz
Brightness	450cd/m²
Ratio contrast	2000:1
Visual Angle (horizontal/vertical)	178°/178°
Response time	8ms
Visual area(mm)	1649.7(W)×928(H) mm
Color gamut (NTSC)	72%
Backlight	WLED
display scale	16:9
Response time	＜8ms
Life	>60000H
Infrared touch characteristic
Touch the specifications	Infrared touch frame
glass	4mm tempered glass
Glass transmittance	> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Object induction number (IR)	Touch at 20
Number of infrared induction lines (W D)	32767 × 32767
Positional accuracy	More than 90% of the touch area is 2mm
The interface definition	USB 2.0(Full speed)
Touch the strength	Zero pressure touch
The light resistance	It has light resistance
Induction life	6 million times
The response time	＜8ms
The power supply mode	Full duplex usb-powered DC +5V up to 500mA
Switching power supply
Power consumption (typical value)	AC100-240V~(+/-10%),50/60Hz
Standby power consumption	270W
The power interface	1W
Switching power supply	European standard 220V two - phase three - wire system
Mechanical specification parameters
The net weight	52kg
Gross weight	63kg
Bare machine outline size (W x D x H)	1715.8×1024.1×96.8mm
Package size (W x D x H)	1813×1126×190mm
Shell material (face frame/back shell)	Plastic/Sheet metal
Shell color (face frame/back shell)	black
To protect the glass	4mm toughened glass/level 7 earthquake resistant
Type of installation	Supports/wall hangers
The cooling way	Temperature-controlled fan dissipates heat
The environment
Working temperature	0℃~50℃
Working humidity	20%~80%(No condensation)
Storage temperature	-20℃~60℃
Store humidity	10%~90%(No condensation)
Display mode	S-ips, often black display, transmission
Maximum service time (hours/day)	24 hours
Features
The speaker	2×8Ω/5W(built in)
Support for input mode	Stylus writes keyboard
The attachment
The user manual	Manual, warranty card, certificate of conformity
cable	The power cord
Others (optional accessories)	Remote control, base/bracket, WiFi
